20-500A UL94-V0 Open Loop Programming Hall Effect Current Transformer
A hall effect current sensor allows non-contact detection of direct and alternating currents, using a hall element, a magnet-electric converting element. This minimizes power loss of the target current circuit and has a simple structure with high reliability.
Open-loop current sensors measure AC and DC currents and provide electrical isolation between the circuit being measured and the output of the sensor (the primary current is measured without electrical contact with the primary circuit, providing galvanic isolation).
Standards
- UL94-V0.
- EN60947-1:2004
- IEC60950-1:2001
- EN50178:1998
- SJ 20790-2000
Characteristics chart
The TKC-TG3 series current sensor is a open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of 3 phase DC, AC or pulsed currents.
| | Value | Unit | Symbol |
| Operating temperature | -40 to +125 | ºC | TA |
| Storage temperature | -40 to+150 | ºC | TS |
| Mass(approx) | 99 | g | M |
| Electrical data(Ta=25℃±5℃,RL=2KΩ,CL=10000PF) |
| Type
Parameter | TKC 20TG352 | TKC 50TG352 | TKC 100TG352 | TKC 200TG352 | TKC 300TG352 | TKC 400TG352 | TKC 500TG352 | Unit |
| Rated current(Ipn) | ±20 | ±50 | ±100 | ±200 | ±300 | ±400 | ±500 | A |
| Measuring range(Ip) | ±22 | ±55 | ±110 | ±220 | ±330 | ±440 | ±550 | A |
| Rated output | @Ip=±Ipn ±2±1% | | | | V |
| Supply voltage | +5 ±5% | | | | V |
| Power Consumption | ≤15 | | | | mA |
| Offset voltage | ≤±20 | | | | mV |
| Magnetic offset | ±15 | | | | mV |
| Offset drift | @ -40～+85℃ ≤±2.0 | | | | mV/℃ |
| output drift | ±1.0 | | | | mV/℃ |
| Linearity | @Ip=0-±Ipn ≤1 | | | | %FS |
| Response time | @50A/μS, 10%-90% ≤8 | | | | μS |
| Galvanic isolation | @ 50HZ,AC,1min 2.5 | | | | KV |
Applications
Variable speed drives
Welding machine
Battery supplied applications
Uninterruptible Power Supplies (UPS)Electrochemical

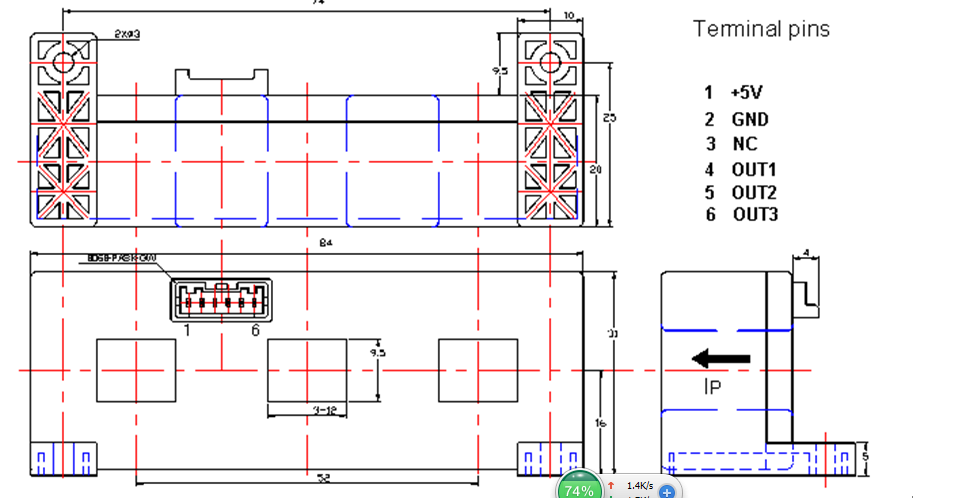

Mechanical dimension(for reference only)
Remarks:
1. All dimensions are in mm.
2. General tolerance ±1mm
Directions for use
Is will be in a forward direction when the Ip flows according to the direction of the arrowhead.
The primary conductor should be≤120℃.
The dynamic performance (di/dt and the response time) is the best when the primary hole is fully filled with the bus bar.
Characteristics chart
